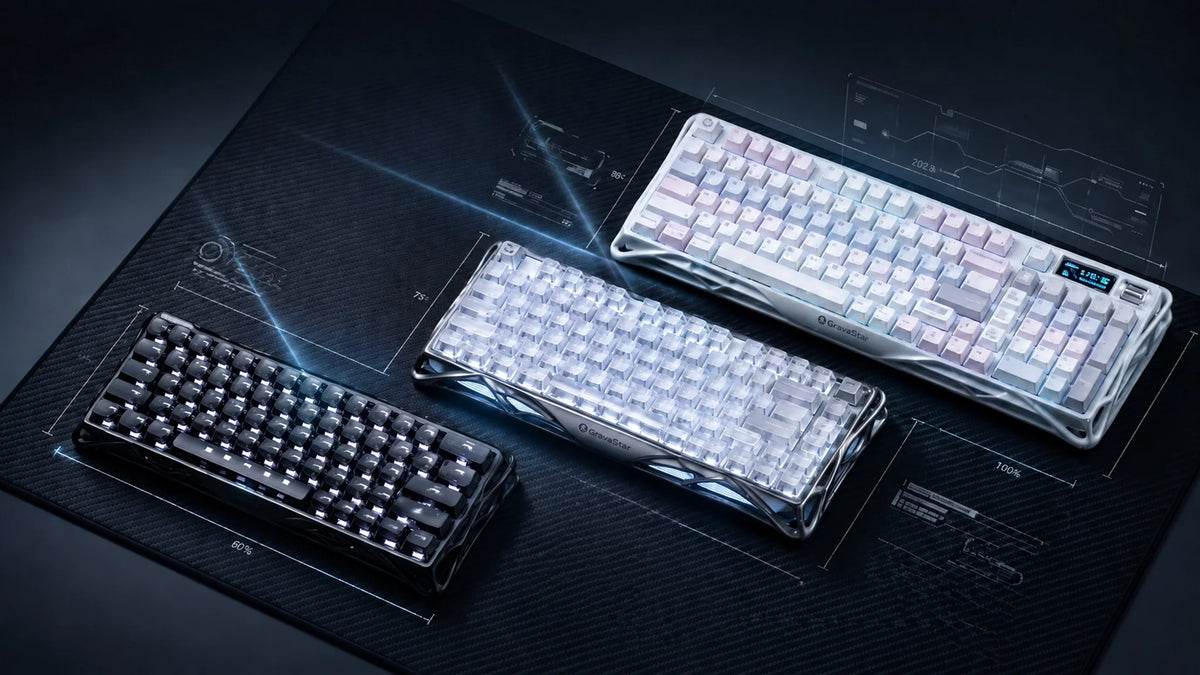

How to Choose the Right Keyboard Layout in 2026: From 60% Compact to 1800 Numpad Setups

A keyboard layout guide should compare the keys you use every day with the room each board leaves for your mouse.

A 60% layout leaves the most room for mouse movement, but arrow keys and function keys sit on a function (Fn) layer. A 75% keeps dedicated arrow keys and a function row while removing the number pad. A 98% keeps number entry on the board, with the clusters packed more closely than on a full-size keyboard.

If you enter numbers throughout the day, a physical numeric keypad may matter more than extra mouse room. For a wide mouse pad, check how much desk space each keyboard size leaves after you place it where you actually type.

60 vs. 75 vs. 1800 Keyboard: Which Keys Stay?

A 60% keeps the alphanumeric keys and modifiers, with arrow keys and F1–F12 accessed through a layer. A 75% adds dedicated arrow keys and a function row but leaves out the numpad. A 98% board in the 1800-style compact-numpad family retains the number pad, arrows, and F-row, with less space between the key groups.



Removing the numpad can bring the mouse closer to the typing hand, while the number row remains available for occasional figures. Case dimensions determine the actual space for mouse movement because frames extend different distances beyond the keys. Moving from 75% to 60% saves additional width but also moves arrows and F-keys onto a layer.

On an 1800 layout, closely spaced groups may take time to distinguish by touch. Delete and Home may also move from their positions on a traditional full-size keyboard. A tenkeyless (TKL) keyboard drops the number pad like a 75% but retains a more widely spaced navigation cluster in a wider case.

Best Keyboard Size for Gaming and Work

For first-person shooter (FPS) gaming, 60% and 75% leave more space beside the keyboard than a layout with a number pad. A 75% suits games and office work that repeatedly call for arrows or F-keys, while 98% keeps dedicated number keys available for daily entry.

Wide mouse sweeps need clear space

For a wide mouse sweep, a 60% compact keyboard gives you the most clearance of these three layouts. It suits games whose controls fit on the main typing block, provided layered commands work for the arrows and F-keys you use elsewhere. A 75% occupies more desk space but keeps those keys available without a layer.

GravaStar’s Mercury V60 Pro combines a 60% layout with per-key Hall Effect actuation settings and dynamic Rapid Trigger. You can set shallow actuation for movement keys and a deeper point for commands you want to press deliberately. Its controller mapping also uses press depth for racing inputs such as throttle and brake.

Hotkeys benefit from a physical F-row

For games with frequent F1–F12 commands, a 75% gives each function key a direct position without the width of a number pad. Dedicated arrows also remain available for chat and editing after play. A TKL keyboard adds a more widely spaced navigation island if that familiar arrangement matters more than the narrower case.

In GravaStar’s 75% range, switch type distinguishes the Mercury V75 Pro from the Mercury K1. The V75 Pro pairs its dedicated F-row and arrows with adjustable magnetic actuation and Rapid Trigger. The K1 is a mechanical keyboard with hot-swappable switches and wired, Bluetooth, or 2.4 GHz wireless connections.

Daily numbers justify a numpad

For regular number entry, a 98% keeps the number pad attached and packs the navigation keys into a compact layout. Spreadsheet work and invoices often call for repeated figures, while a mappable numpad can also hold commands for games that use many hotkeys.

At the 1800-style end of the range, GravaStar’s Mercury K98 Pro keeps a dedicated numpad in its 98-key layout. Its multifunction knob provides another control, and the 1.65-inch display can show system stats. The web driver supports key remapping and macros.

Measure Mouse Clearance and Desk Fit

Two boards with the same percentage can occupy different amounts of desk space because their frames extend beyond the outer keys. A compact form factor can still need room for a rear cable and wrist rest, so measure the whole setup in your normal typing position.Case width determines the mouse gap

Place the keyboard where your hands normally type, then put the mouse at its usual starting point. Move it through the widest sweep you make during play and note where the case begins to interfere. Include the sculpted frame beyond the outer keys.

The longest listed case dimensions are 12.8 inches for the V60 Pro and 16.34 inches for the V75 Pro. The K98 Pro measures 18.11 inches along its longest side.

If you angle the keyboard during games, repeat the test at that angle because its corners may occupy a different part of the pad. A paper outline cut to the prospective board’s dimensions lets you check the fit before buying.

Desk depth changes the arrangement

Desk depth matters when a deep case or rear cables push the board toward the front edge. A wrist rest takes up more space in front, and a nearby laptop may limit where the keyboard can sit. Check the arrangement in your normal work position and your gaming position.

Check four clearances with the keyboard in place:

• Mat width: Record the clear horizontal space after placing the keyboard.

• Mouse path: Test the widest movement used during play.

• Case edge: Include the frame beyond the outer keys.

• Rear clearance: Allow room for the cable and nearby equipment.

Test Function Layers During Ordinary Work

A function layer makes missing commands available on a compact board, but reaching them requires a two-key combination. Repeated cursor movement or F-key use makes that combination part of your regular workflow. Layers also can’t reproduce the shape and hand position of a physical number pad for daily data entry.

For one week, track the inputs most likely to change with a 60% board:

• Count arrow presses: Notice how often cursor movement interrupts typing or spreadsheet work.

• Record F-key use: Check whether games or applications call for these inputs repeatedly.

• Assess number entry: Decide whether the top row handles occasional figures or a physical pad serves daily work.

If you can try a 60% board, use its Fn-layer arrows to move through a spreadsheet and position the cursor while editing a document. Repeatedly switching between typing and cursor movement will show whether that combination feels comfortable.

Fn assignments vary by model, so locate the modifier and arrow combinations on the board’s own keymap. The position of Fn can make an arrow command comfortable on one board and awkward on another. If remapping is available, check whether your preferred arrangement works for each computer or profile you use.

Inspect the Compact Numpad Before Buying

The labels 1800, 96%, and 98% describe compact boards with number pads, but they don’t specify navigation positions or cluster gaps. Fitting more keys into the case can also change the numpad’s bottom row.

Names do not fix the keymap

Some boards bring the arrows close to the typing block, while others use a narrow navigation column. Locate Delete, Home, and any other navigation keys you use regularly on the exact board.

Cluster gaps also help your fingers distinguish the arrows from neighboring keys without looking down, so a tighter case may take an adjustment period.

Zero width changes thumb placement

A conventional wide numpad zero occupies two standard key units, written as 2u. Some compact boards use a single-unit, or 1u, zero to free a position for another key. The digit is still available, but your thumb must find a narrower target during repeated entry. Check the Enter position for the same reason.

If you plan to replace the keycaps, check that the keycap set fits the board’s zero width and right Shift key. Some compact layouts use a 1.75u right Shift, so compare the actual key sizes before ordering. Check the spacebar size as well if the replacement set offers several bottom-row options.

Choose a GravaStar Keyboard by Layout

Explore GravaStar’s Mercury keyboard collection by the layout that fits your work and mouse pad. The V60 Pro covers 60%, the V75 Pro and K1 cover 75%, and the K98 Pro provides a 98% layout with a numpad. The V-series offers magnetic actuation controls, while the K1 and K98 Pro offer mechanical switches.

Compare each model’s keymap and case dimensions before choosing a finish for your mecha gaming desk setup.

FAQs

Does layout change Hall Effect or Rapid Trigger?

Layout determines which keys have dedicated switches, while Hall Effect sensing and Rapid Trigger depend on the keyboard’s hardware and firmware. Both 60% and 75% boards can offer adjustable magnetic actuation, but Rapid Trigger settings and press-depth mapping vary by model. Compare those features in the specifications for the exact board.

Is a 98% a full-size keyboard in a smaller case?

A 98% keeps the number pad but brings the key groups closer together than a traditional full-size layout. Arrow and navigation keys may move, so check their positions on the exact board. If you rely on the familiar gaps between those groups, compare a full-size layout before choosing a compact one.

Do I need a different board for Mac and Windows?

Keyboard size does not determine operating-system compatibility. A 60%, 75%, or 98% board can work with Mac and Windows if the model supports both systems. Check its modifier labeling, operating-system switching, and key remapping before choosing one board for both computers.

How long does a 60% take to learn?

There is no fixed adjustment period because it depends on how often you use layered commands. Games centered on WASD may feel familiar quickly, while moving through documents with Fn-layer arrows may take more practice. Try those commands during ordinary work for a week; if frequent arrow or F-key combinations still interrupt you, a 75% gives them dedicated keys.

Is keyboard size the same as ANSI or ISO?

Keyboard percentages describe which groups of keys the board includes. American National Standards Institute (ANSI) and International Organization for Standardization (ISO) layouts describe key shapes and positions, including Enter and left Shift. Choose the size for your desk and daily inputs, then check which physical standard and keycap sets the exact model supports.
